PostgreSQL Monitoring with Prometheus Operator

This guide demonstrates how to configure comprehensive monitoring for PostgreSQL clusters in KubeBlocks using:

1. Prometheus Operator for metrics collection
2. Built-in PostgreSQL exporter for metrics exposure
3. Grafana for visualization

Prerequisites

Before proceeding, ensure the following:

• Environment Setup:
  • A Kubernetes cluster is up and running.
  • The kubectl CLI tool is configured to communicate with your cluster.
  • KubeBlocks CLI and KubeBlocks Operator are installed. Follow the installation instructions here.
• Namespace Preparation: To keep resources isolated, create a dedicated namespace for this tutorial:

kubectl create ns demo
namespace/demo created

Install Monitoring Stack

1. Install Prometheus Operator

Deploy the kube-prometheus-stack using Helm:

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm install prometheus prometheus-community/kube-prometheus-stack \
  -n monitoring \
  --create-namespace

2. Verify Installation

Check all components are running:

kubectl get pods -n monitoring

Expected Output:

NAME                                                     READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0   2/2     Running   0          114s
prometheus-grafana-75bb7d6986-9zfkx                      3/3     Running   0          2m
prometheus-kube-prometheus-operator-7986c9475-wkvlk      1/1     Running   0          2m
prometheus-kube-state-metrics-645c667b6-2s4qx            1/1     Running   0          2m
prometheus-prometheus-kube-prometheus-prometheus-0       2/2     Running   0          114s
prometheus-prometheus-node-exporter-47kf6                1/1     Running   0          2m1s
prometheus-prometheus-node-exporter-6ntsl                1/1     Running   0          2m1s
prometheus-prometheus-node-exporter-gvtxs                1/1     Running   0          2m1s
prometheus-prometheus-node-exporter-jmxg8                1/1     Running   0          2m1s

Deploy a PostgreSQL Cluster

KubeBlocks uses a declarative approach for managing PostgreSQL clusters. Below is an example configuration for deploying a PostgreSQL cluster with 2 replicas (1 primary, 1 replicas).

Apply the following YAML configuration to deploy the cluster:

apiVersion: apps.kubeblocks.io/v1
kind: Cluster
metadata:
  name: pg-cluster
  namespace: demo
spec:
  terminationPolicy: Delete
  clusterDef: postgresql
  topology: replication
  componentSpecs:
    - name: postgresql
      serviceVersion: 16.4.0
      labels:
        apps.kubeblocks.postgres.patroni/scope: pg-cluster-postgresql
      disableExporter: true
      replicas: 2
      resources:
        limits:
          cpu: "0.5"
          memory: "0.5Gi"
        requests:
          cpu: "0.5"
          memory: "0.5Gi"
      volumeClaimTemplates:
        - name: data
          spec:
            accessModes:
              - ReadWriteOnce
            resources:
              requests:
                storage: 20Gi

Key Monitoring Configuration

• disableExporter: false enables the built-in metrics exporter
• Exporter runs as sidecar container in each PostgreSQL pod
• Scrapes PostgreSQL metrics on port 9187

Verifying the Deployment

Monitor the cluster status until it transitions to the Running state:

kubectl get cluster pg-cluster -n demo -w

Example Output:

NAME         CLUSTER-DEFINITION   TERMINATION-POLICY   STATUS     AGE
pg-cluster   postgresql           Delete               Creating   50s
pg-cluster   postgresql           Delete               Running    4m2s

Once the cluster status becomes Running, your PostgreSQL cluster is ready for use.

Configure Metrics Collection

1. Verify Exporter Endpoint

Confirm metrics are exposed:

kubectl get po pg-cluster-postgresql-0 -n demo -oyaml | \
  yq '.spec.containers[] | select(.name=="exporter") | .ports'

Example Output:

- containerPort: 9187
  name: http-metrics  # Used in PodMonitor
  protocol: TCP

Test metrics endpoint:

kubectl -n demo exec -it pods/pg-cluster-postgresql-0 -- \
  curl -s http://127.0.0.1:9187/metrics | head -n 50

2. Create PodMonitor

apiVersion: monitoring.coreos.com/v1
kind: PodMonitor
metadata:
  name: pg-cluster-pod-monitor
  namespace: demo
  labels:               # Must match the setting in 'prometheus.spec.podMonitorSelector'
    release: prometheus
spec:
  jobLabel: app.kubernetes.io/managed-by
  # defines the labels which are transferred from the
  # associated Kubernetes 'Pod' object onto the ingested metrics
  # set the lables w.r.t you own needs
  podTargetLabels:
  - app.kubernetes.io/instance
  - app.kubernetes.io/managed-by
  - apps.kubeblocks.io/component-name
  - apps.kubeblocks.io/pod-name
  podMetricsEndpoints:
    - path: /metrics
      port: http-metrics   # Must match exporter port name
      scheme: http
  namespaceSelector:
    matchNames:
      - demo               # Target namespace
  selector:
    matchLabels:
      app.kubernetes.io/instance: pg-cluster
      apps.kubeblocks.io/component-name: postgresql

PodMonitor Configuration Guide

Verify Monitoring Setup

1. Check Prometheus Targets

Forward and access Prometheus UI:

kubectl port-forward svc/prometheus-kube-prometheus-prometheus -n monitoring 9090:9090

Open your browser and navigate to: http://localhost:9090/targets

Check if there is a scrape job corresponding to the PodMonitor (the job name is 'demo/pg-cluster-pod-monitor').

Expected State:

• The State of the target should be UP.
• The target's labels should include the ones defined in podTargetLabels (e.g., 'app_kubernetes_io_instance').

2. Test Metrics Collection

Verify metrics are being scraped:

curl -sG "http://localhost:9090/api/v1/query" --data-urlencode 'query=up{app_kubernetes_io_instance="pg-cluster"}' | jq

Example Output:

{
  "status": "success",
  "data": {
    "resultType": "vector",
    "result": [
      {
        "metric": {
          "__name__": "up",
          "app_kubernetes_io_instance": "pg-cluster",
          "app_kubernetes_io_managed_by": "kubeblocks",
          "apps_kubeblocks_io_component_name": "postgresql",
          "apps_kubeblocks_io_pod_name": "pg-cluster-postgresql-1",
          "container": "exporter",
          "endpoint": "http-metrics",
          "instance": "10.244.0.129:9187",
          "job": "demo/pg-cluster-pod-monitor",
          "namespace": "demo",
          "pod": "pg-cluster-postgresql-1"
        },
        "value": [
          1747377596.792,
          "1"
        ]
      },
      {
        "metric": {
          "__name__": "up",
          "app_kubernetes_io_instance": "pg-cluster",
          "app_kubernetes_io_managed_by": "kubeblocks",
          "apps_kubeblocks_io_component_name": "postgresql",
          "apps_kubeblocks_io_pod_name": "pg-cluster-postgresql-0",
          "container": "exporter",
          "endpoint": "http-metrics",
          "instance": "10.244.0.128:9187",
          "job": "demo/pg-cluster-pod-monitor",
          "namespace": "demo",
          "pod": "pg-cluster-postgresql-0"
        },
        "value": [
          1747377596.792,
          "1"
        ]
      }
    ]
  }
}

Visualize in Grafana

1. Access Grafana

Port-forward and login:

kubectl port-forward svc/prometheus-grafana -n monitoring 3000:80

Open your browser and navigate to http://localhost:3000. Use the default credentials to log in:

• Username: 'admin'
• Password: 'prom-operator' (default)

2. Import Dashboard

Import the KubeBlocks PostgreSQL dashboard:

1. In Grafana, navigate to "+" → "Import"
2. Choose one of these methods:
   • Paste the dashboard URL: https://raw.githubusercontent.com/apecloud/kubeblocks-addons/main/addons/postgresql/dashboards/postgresql.json
   • Or upload the JSON file directly

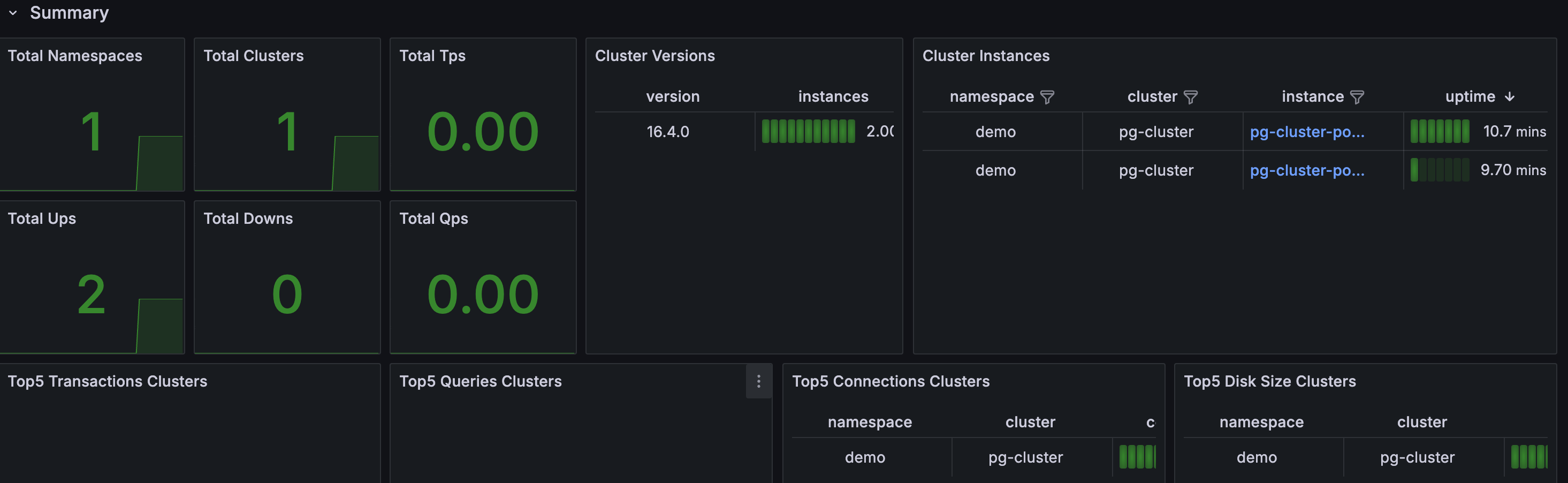

Dashboard Includes:

• Cluster status overview
• Query performance metrics
• Connection statistics
• Replication health

Delete

To delete all the created resources, run the following commands:

kubectl delete cluster pg-cluster -n demo
kubectl delete ns demo
kubectl delete podmonitor pg-cluster-pod-monitor -n demo

Summary

In this tutorial, we set up observability for a PostgreSQL cluster in KubeBlocks using the Prometheus Operator. By configuring a PodMonitor, we enabled Prometheus to scrape metrics from the PostgreSQL exporter. Finally, we visualized these metrics in Grafana. This setup provides valuable insights for monitoring the health and performance of your PostgreSQL databases.
